Description
Overview
Dimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3″)
Weight: 100 g (3.5 oz)
Output Voltage: 48V DC @ 0.32A
Rated Voltage: 100—240V AC @ 50/60Hz
LAN Activity Indicator: —
Gigabit LAN Port: ✓
Remote Reset Capability: —
Reset Button: —
2-pair Powering: Pins 4, 5 (+) and 7, 8 (–)

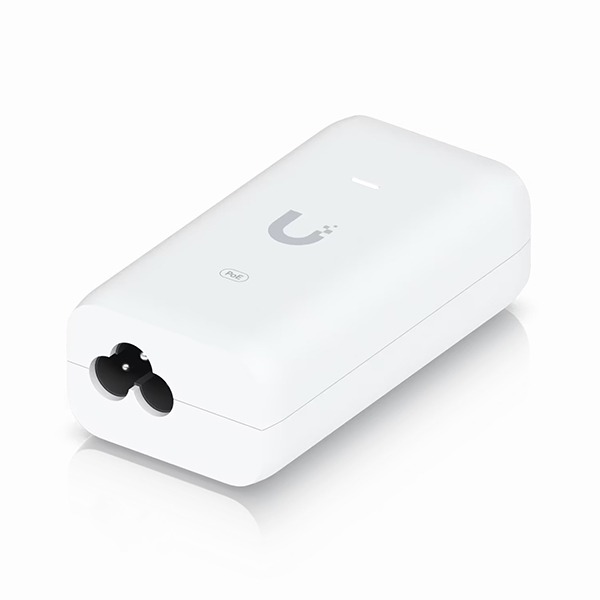

AC Connector: IEC-320 C6
Clamping Protection: 11V Data, 60V Power

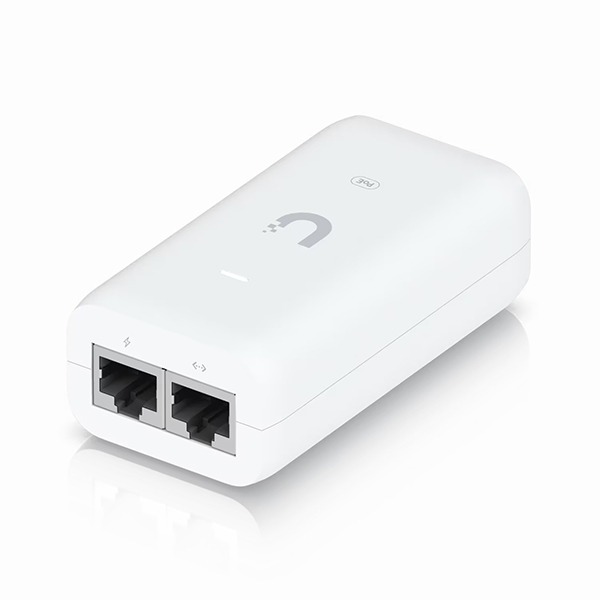

Data In / PoE: RJ45 Shielded Socket
Input Current: 500mA Max.
Inrush Current: <100A peak at 25°C
Efficiency: 84.25+%
Switching Frequency: 65 kHz
Output Ripple: 200mV p-p
Line Regulation: ≤ 3%
Load Regulation: ≤ 5%
Max. Surge Discharge: 1500A (8/20 μs) power
Peak Pulse Current: 36A (10/1000 μs) data
Response Time: <1 ns
Shunt Capacitance: <5 pF data
Surge Protection: Difference and Common Mode
Ambient Storage Temperature: -30 to 70°C (–22 to 158°F)
Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
Ambient Operating Humidity: 10 to 95% (non-condensing)
NDAA Compliant: ✓

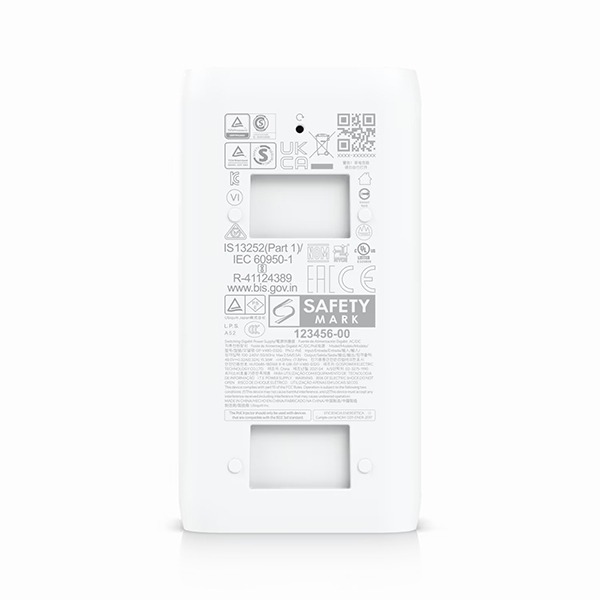

Certifications: CE, FCC, IC, UL, CCC
