Description
Mechanical
Dimensions: 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3″)
Weight: 80 g (2.8 oz)
Enclosure Material: Polycarbonate
Weatherproofing: IPX5
Hardware

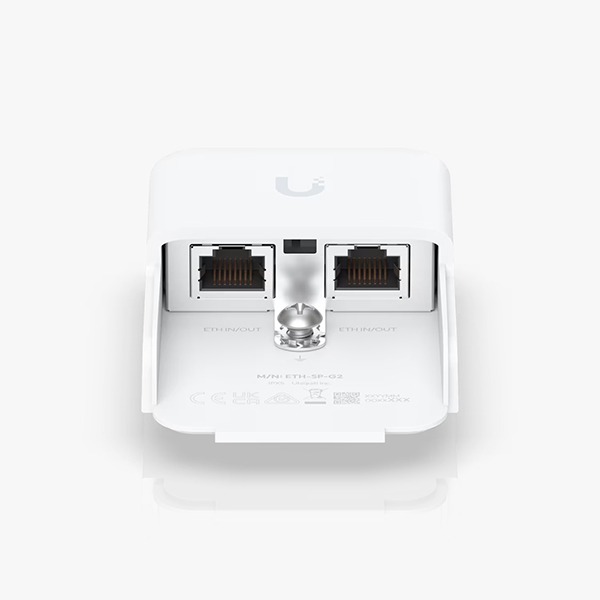

Networking Interface: (2) RJ45 female connectors
ESD/EMP Protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage: 90V @ 100V/s
Max. Impulse Spark-Over Voltage: 700V @ 1kV/µs
Discharge Current: 10kA+
Max. Insulation Resistance: 1G ohm @ 50V
Max. Capacitance: 1.0 pF @ 1 MHz
Data Line Protection: Up to 2.5 Gbps
PoE Support: ✓
Ambient Operating Temperature: –30 to 65°C (–22 to 149°F)
Ambient Operating Humidity: 10 to 90% (non-condensing)
Shock and Vibration Certification: ETSI300-019-1.4 Standard
