Overview
Dimensions
442 x 120 x 43.7 mm
(17.4 x 4.7 x 1.7″)

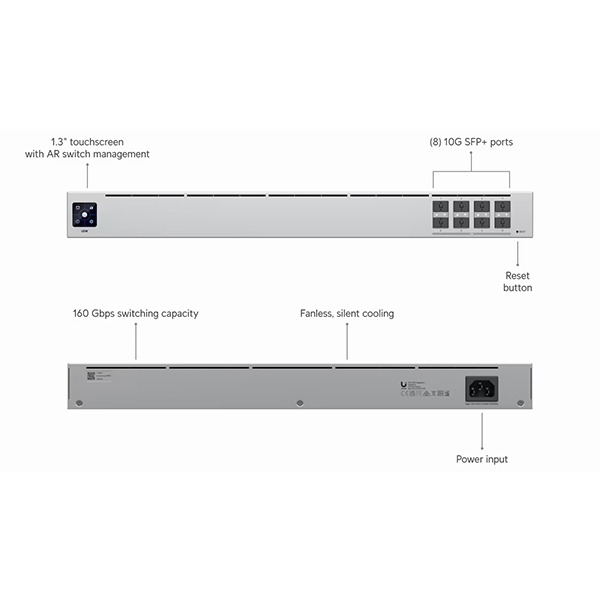

Port Layout
10G SFP+ โ 8
Form Factor
Rack mount (1U)
Performance
Switching Capacity
160 Gbps
Total Non-Blocking Throughput
80 Gbps
Forwarding Rate
119 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
Packet Buffer Size
1.5 MB
Access Lists
IPv4 โ 128
MAC โ 128
Layer 2 Features
LACP Port Aggregation
โ
STP & RSTP
โ
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
โ
IGMP Snooping
โ
802.1X Control
โ
MAC-Based ACLs & Device Isolation
โ
DHCP Snooping & Guarding
โ
Egress Rate Limit
โ
Flow Control
โ
Storm Control
โ
Multicast & Broadcast Rate Limiting
โ
MAC Address Blocking
โ
IP-Based ACLs & Network Isolation
โ
MAC-Based Port Restriction
โ
Port Isolation
โ
Port Mirroring
โ
Jumbo Frames
โ
LLDP-MED
โ
Voice VLAN
โ
Loop Protection
โ
Hardware
Max. Power Consumption
36W (Including SFP modules)
Power Method
Universal input, 100โ240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 36W
Supported Voltage Range
100โ240V AC
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
102.36 BTU/hr
Weight
Without mounting brackets: 2.6 kg (5.8 lb)
With mounting brackets: 2.7 kg (6 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400 ~ 1200 mm (15.7 – 47.2″)
LCM Display
1.3″ touchscreen
ESD/EMP Protection
Air: ยฑ 16kV, contact: ยฑ 12kV
Ambient Operating Temperature
-5 to 40ยฐ C (23 to 104ยฐ F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
โ
Certifications
CE, FCC, IC, Anatel
Software
Application Requirements
UniFi Network Version 5.14.12 and later
