Description

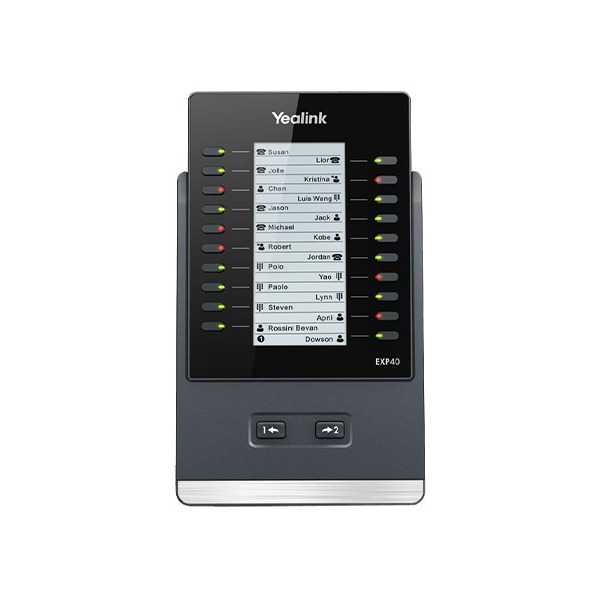

Yealink EXP40 – Specifications
Display & Interface
-
Graphic LCD: 160 × 320 pixels, 16-level grayscale, backlit
-
Supports two page views — allows switching between two sets of keys
-
Desk stand with 2 adjustable angles; also wall-mountable
Keys & Programmable Functions
-
20 physical keys, each with a dual-color LED for status (busy / free / ringing / etc.)
-
Two page views provide up to 40 programmable keys per module
-
Two independent control keys for quick page switching
-
Programmable functions include:
-
Busy Lamp Field (BLF) / Bridge-Line Appearance (BLA)
-
Speed-dial / Hotline / Direct call
-
Call transfer, call forward, call park / pick-up
-
Call hold, conference, voicemail / message waiting indicator, DND, shared-line, directory access
-
Connectivity & Expandability
-
Two RJ12 ports (Data-IN and Data-OUT) to connect to a host phone or daisy-chain to another module
-
Supports up to 6 chained modules on a single phone, giving up to 240 programmable keys
-
Power: up to 2 modules powered by host phone; more than 2 require external 5 V / 1.2 A power supply
Physical & Environmental
-
Dimensions: approx. 127 × 213 × 45 mm
-
Operating temperature: -10 °C to +50 °C
-
Operating humidity: 10% – 95% (non-condensing)
Compatibility
-
Works with compatible Yealink IP phones that support external expansion modules (e.g., SIP‑T46S, SIP‑T46G, SIP‑T48S, SIP‑T48G)
