Description
O2 Module 2FXO Compatible with MyPBX series and Asterisk card
The O2 is a module with 2 FXO ports to terminate two analog PSTN(POTS) lines

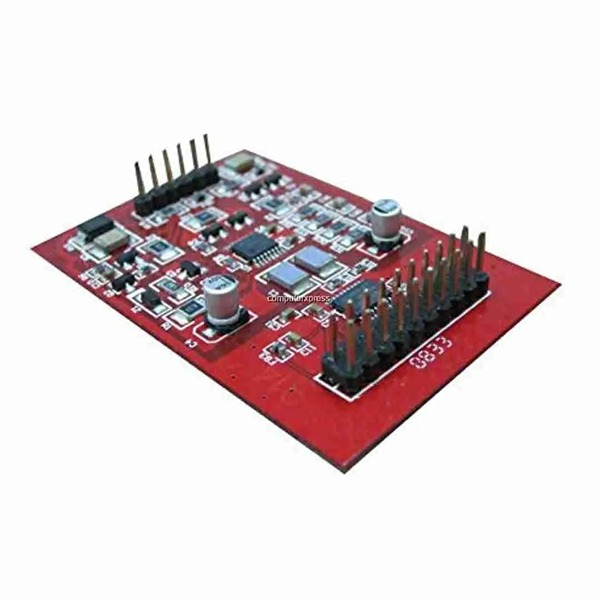

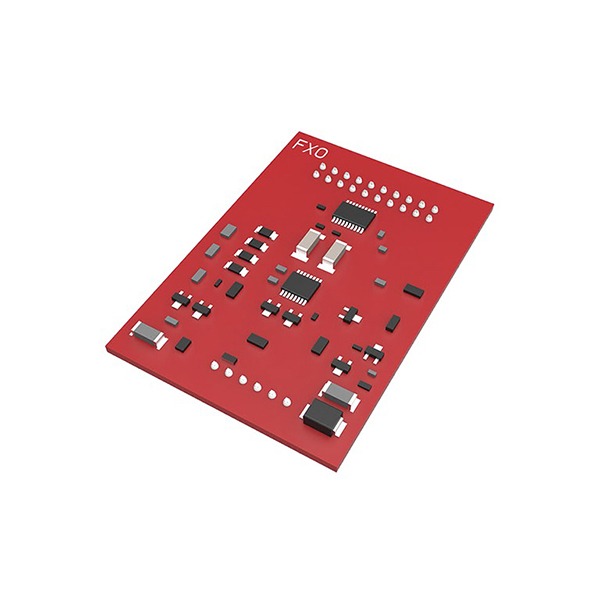

Yeastar O2 Module – 2 FXO Ports
General
-
Module type: FXO (Foreign Exchange Office) module
-
Number of FXO ports: 2
-
Connector type: 2 × RJ11 FXO ports
Telephony / Line Termination
-
Designed to terminate two analog PSTN (POTS) lines — allows connecting standard land‑lines to a VoIP PBX
-
Enables analog PSTN lines integration into Yeastar IP‑PBX systems
Signalling & Detection
-
Ring frequency detection: 15–50 Hz
-
Ring voltage detection: 30+ VRMS (depending on FXO mode)
-
Supports echo cancellation for improved voice quality
Signaling Modes / Functionality
-
Supports multiple signaling modes including:
-
Foreign Exchange Office (for two‑way connection to a PBX or key system trunk)
-
Foreign Exchange Station (for connection to a carrier or public network)
-
PLAR (Private Line Automatic Ringdown) — point‑to‑point unswitched connections
-
Compatibility & Use Case
-
Compatible with Yeastar S‑Series and many P‑Series (or legacy MyPBX) PBX systems (depending on slot/expansion availability)
-
Useful for businesses that need to connect traditional PSTN lines along with VoIP, or as backup / PSTN failover when Internet/VoIP is down
