Description
100 users expandable to 200: Max 16 FXS/FXO, Max 16 BRI ports, Max 6 GSM, Max 2 E1 ports, Auto Recording, Rack
Mount

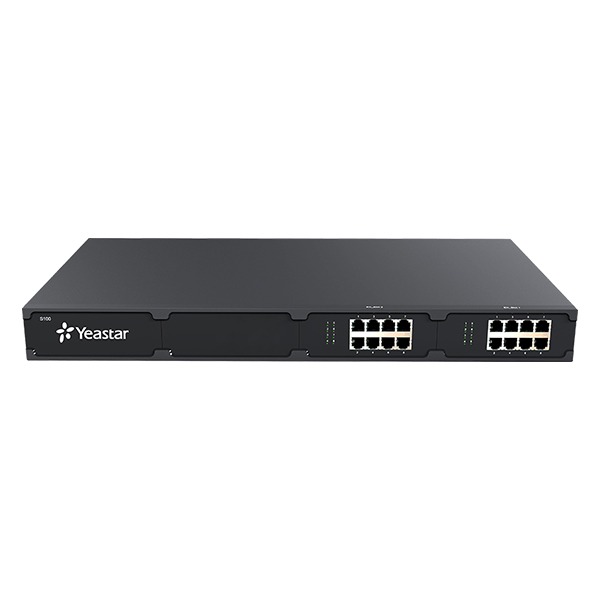

Yeastar S100 Deatiled Specification
- 100 users (expandable to 200) and 30 concurrent calls (expandable to 60)
- Includes 100 SIP trunks
- Add optional modules to activate additional ports up to 16 Analog, 16 BRI, 6 GSM, and 2 E1/T1/J1
- Includes 10,000 minutes of expandable voicemail storage
- Add D30 module to expand capacity by 100 extensions and 30 concurrent calls
- Two interfaces for expansion cards (EX08 1 PRI card or EX30 mounting card for four modules)
- Built-in call recording capability
- Add on powerful apps including auto provisioning, LDAP, and more
- Free lifetime software/firmware upgrades
- Connect multiple sites and remote users instantly
- No hidden charges or extra licensing fees
- Low power consumption at 5.5-41.2W
- Automated attendant (IVR)
- Email to SMS/SMS to email
- Fax to email
- Paging/intercom
- Mobility extension
- Music on hold
- SIP forking
- Voicemail to email
- 1U rack mountable
Yeastar S100 VoIP PBX Quick Specs:
- Communications Protocols: SIP (RFC 3261), IAX2
- Ethernet Ports: 2x 10/100/1000 Gigabit
- Additional Ports: 6x antenna sockets, 1x USB, 1x console, 1x SD card slot
- Users: 100 (expandable to 200 with D30 Module)
- Concurrent Calls: 30 (expandable to 60 with D30 Module)
- FXS/FXO Ports: up to 16 (with O2, S2 or SO module/s)
- E1/T1/PRI Ports: up to 2
- BRI Ports: up to 16 (with B2 module/s)
- GSM Channels: up to 6 (with GSM module/s)
- 3G Channels: up to 6 (with 3G module/s)
- Audio Codecs: G.711µ/a, G.722, G.726, G.729A, GSM, Speex, ADPCM, iLBC
- Video Codecs: H.263, H.263P, H.264, MPEG4
- Fax-over-IP: T.38
- Dimensions: 17.32? x 9.92? x 1.73?
- Mounting: rack
