Description
The S2 is a module with 2 FXS ports to terminate two analog telephone.
S2 Module 2FXS Compatible with MyPBX series and Asterisk card.

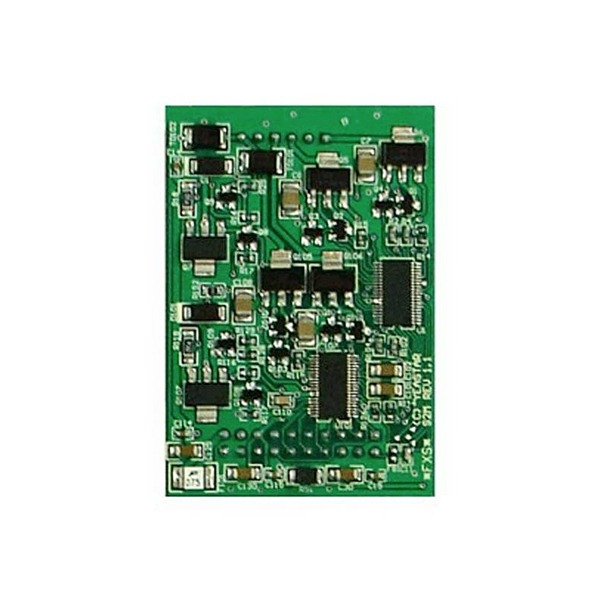

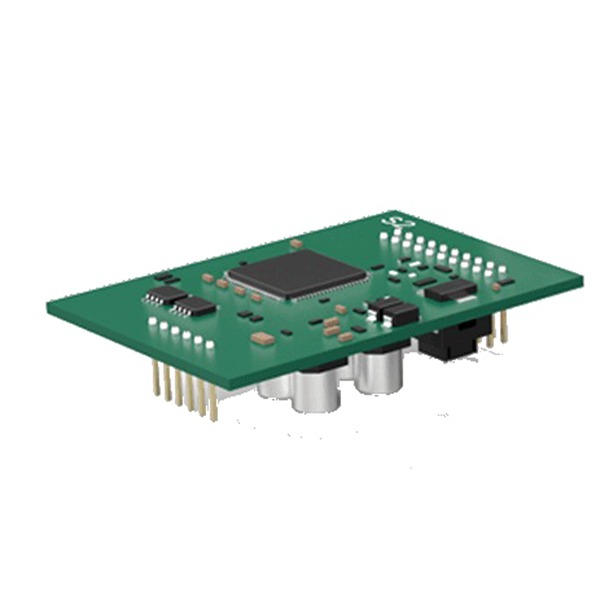

Yeastar S2 Module (2 FXS) – Specifications
General / Compatibility
-
Module type: 2‑port FXS (Foreign Exchange Subscriber / Station)
-
Connectors: 2 × RJ11 FXS ports
-
Compatible with Yeastar S‑Series (S20, S50, S100, S300, S412) and P‑Series (P550, P560, P570), plus legacy MyPBX / MyPBX‑type systems if module slots permit
Electrical / Line Characteristics
-
On‑hook (idle) voltage (tip/ring): 48 V
-
Ring voltage: 85 V
-
Ring frequency: 25 Hz
-
Off‑hook voltage: 11 V
-
Off‑hook current (loop current when phone picked up): approx. 10 mA
-
Loop impedance (line load impedance): 2000 Ω
-
Terminating (line) impedance option: 600 Ω
Line / Cabling Support
-
Maximum cable length (from PBX module to analog device): up to 1500 meters
-
Ring load: 840 Ω
Functionality & Use Cases
-
Allows connection of up to 2 analog devices (phones, fax machines, analog POS, etc.) to a VoIP PBX system
-
Enables hybrid PBX deployments: analog + VoIP devices, suitable for gradual conversion or keeping legacy devices
-
Simple installation: module plugs into compatible PBX slot, powered by main PBX (no external power source required)
