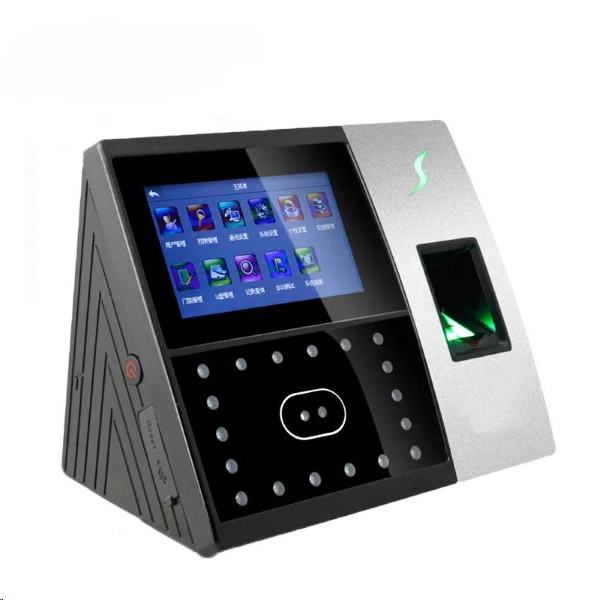

Description
Features:
Identification methods include Face, Fingerprint/RFID and/or Password
Elegant ergonomic design
4.3 TFT touch screen is user-friendly and very intuitive
6 user-defined function keys
Contact relays for door access control (wires to door strike or 3rd party panel)
Web-server management software via IE browser
Optional extendable scheduled-bell
Infra-red optical system enables user-identification in poorly lit environments
Optional built-in battery backup provides approx 4 hours continuous operation.
Optional built-inย GPRS for wireless communication
Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
Wiegand Output for connections to 3rd party access control panels.
Specification:
| CPU | Multi-Bio CPU 630 MHz |
| Memory | 256M Flash, 64M SDRAM |
| Hardware Platform | ZMM220 Multi-Medium Development Platform |
| Fingerprint Sensor | Optical Fingerprint Sensor without film |
| Camera | High Resolution Infrared Camera |
| Display | 4.3 TFT touch screen |
| Face capacity | 500 (1:N) |
| Fingerprint capacity | 2000 |
| Card capacity | 10,000(Optional) |
| Logs capacity | 100,000 |
| Algorithm Version | Face 7.0 & Finger 10.0 |
| 2000mAh backup battery | Optional |
| Communication | TCP/IP,RS232/485 |
| USB-HOST | USB-Host |
| Wireless Wi-Fi | Standard |
| Time attendance Standard functions | Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
| Access control interfaces for | 3rdย party electric lock, door sensor, exit button |
| Wiegand Signal | Output |
| Optional functions | serial printer, RFID card, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS |
| Power supply | 12V3A |
| Verification Speed | 2 sec |
| Operating temp | 0C- 45 C |
| Operating Humidity | 20%-80% |

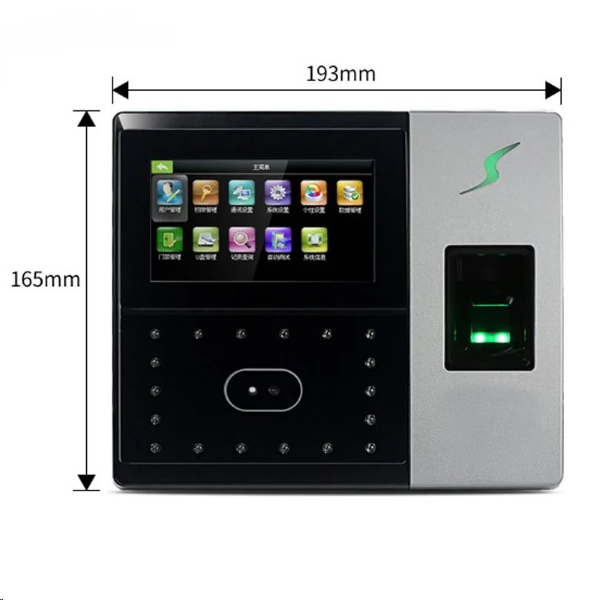

| Dimension | 193*165*112.5ย mm (Length*Width*Thickness) |
| Gross Weight | 1.9 kg |
