Description
Display Specifications
Brightness (ANSI Lumens): 5000
Resolution: WUXGA (1920 × 1200)
Native Aspect Ratio: 16:10
Contrast Ratio (FOFO): 3,000,000:1
Display Color: 30 Bits (1.07 Billion Colors)
Light Source
Type: Laser
Light Source Lifetime: 20,000 Hours
Optical System
Throw Ratio: 1.36 – 2.18
Zoom Ratio: 1.6×
Lens: F/# = 1.81 – 2.1, f = 14.3 – 22.9 mm
Projection Offset (Full Height): 0%
Keystone Adjustment: 2D Keystone, Vertical ±30°, Horizontal ±30°
Lens Shift (Vertical): ±60%
Lens Shift (Horizontal): ±23%
Picture Performance
Rec. 709 Coverage: 92%
Picture Modes: 3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video
Compatibility & Performance
Input Lag: 2 Frames (33.34 ms @ 60Hz)
Supported Resolution Range: VGA (640 × 480) to WUXGA_RB (1920 × 1200)
RB = Reduced Blanking
Horizontal Frequency: 15 kHz – 102 kHz
Vertical Scan Rate: 23 – 120 Hz

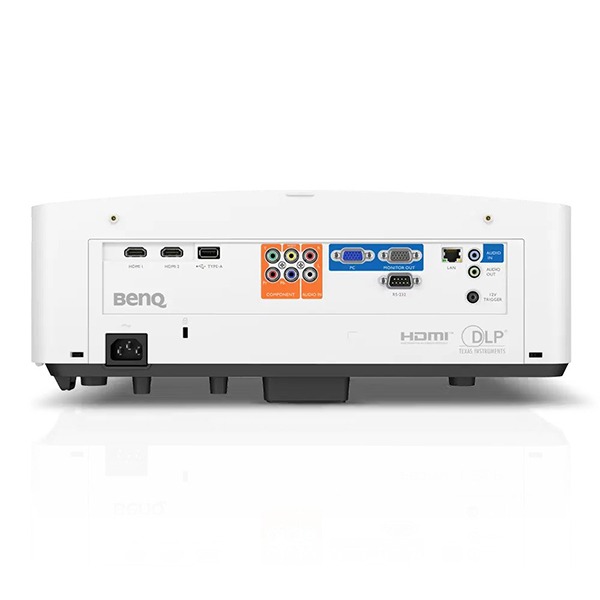

I/O Interfaces
PC Input (D-Sub 15-pin): 1 × PC In-1
Monitor Output (D-Sub 15-pin): 1
Composite Video Input (RCA): 1
Component Video Input (3 × RCA): 1
HDMI Inputs:
• HDMI-1 (1.4a / HDCP 1.4)
• HDMI-2 (1.4a / HDCP 1.4)
LAN (RJ-45): 1
USB Type-A: 1 × USB 2.0 (Power Supply 1.5A / Service)
RS-232 Input (DB-9): 1
DC 12V Trigger (3.5 mm Jack): 1
Audio
Built-in Speakers: 2 × 10W
Audio Input (3.5 mm): 1
Audio Output (3.5 mm): 1
Environmental Conditions
Operating Temperature: 0 – 40°C
Power
Power Supply: AC 100 – 240V, 50/60 Hz
Typical Power Consumption (110V): 415 W
Standby Power Consumption: < 0.5 W
Network Standby Power Consumption: < 2 W
Included Accessories
Remote Control with Battery: RCE016
Power Cord: 1 × 1.8 m (Region Dependent)
HDMI Cable: Yes (1.8 m)
3D Glasses: Optional (DGD5)
Quick Start Guide: 1 (21L)
Warranty Card: Yes (Region Dependent)
Anti-Dust Filter: Optional
Universal Ceiling Mount: Yes (CMG3)
Dimensions & Weight
Dimensions (W × H × D): 416 × 166 × 351 mm
Net Weight: 6.3 kg
Projection System
Projection Technology: DLP
