Description
PANEL
-
Type
Transmissive LCD, Poly-silicon TFT Active Matrix
-
Size and Number
0.55” diagonal, 3 panels
-
Aspect Ratio
4:3
-
Native Resolution
1024 x 768 (XGA), 786432 pixels
OPTICS
-
Lamp Type
215W NSHA
-
Lens F Number and Focal Length
F2.0 – F2.15; f=18.38 – 22.06mm
-
Zoom Magnification and Control
1.2x Manual
-
Focus Control
Manual
-
Lens Shift
6 : 1 (fixed)
IMAGE AND AUDIO
-
Brightness
2200 lumens
-
Brightness Uniformity
85%
-
Contrast Ratio
500:1
-
Projection Distance Coverage
1.3m – 11.8m (3.3m – 3.9m for 100” image)
-
Screen Size
40” – 300” (813 x 610mm – 6096 x 4572mm)
-
Digital Zoom Magnification
0.5x – 4x
-
Keystone Correction Range
Vertical: Manual +/- 30° ; Auto +/- 20°
-
Analogue RGB Compatibility
(WUXGA/UXGA/WXGA/SXGA+/SXGA) / XGA / SVGA / VGA / MAC
-
Component Video Scan Systems
1080i / 1035i / 720p / 575p / 575i / 480p / 480i
-
Video / S-Video Colour Systems
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
-
Display Modes
Presentation, Standard, High Contrast, Cinema, Blackboard (green), Colour board (red, blue, yellow, green), User 1 – 4

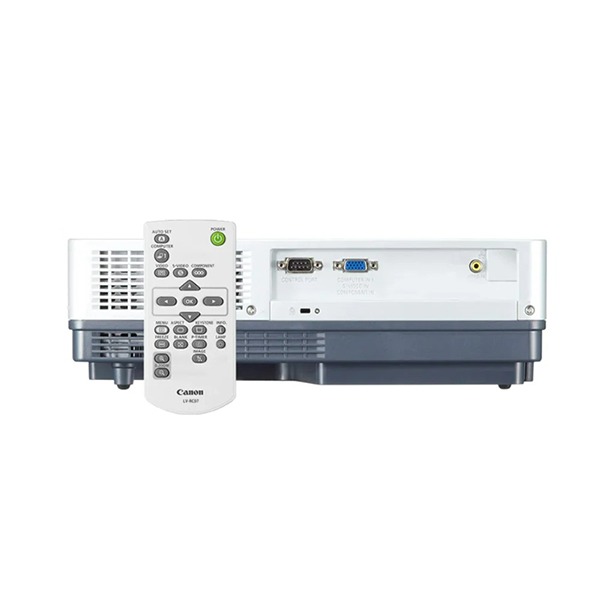

Digital Video and Audio Input
-
Analogue RGB Input 1
Mini D-Sub 15-pin (Component Video via optional cable / S-Video via optional cable / SCART-RGB via optional cable)
-
S-Video Input
Mini D-Sub 15-pin (Shared with RGB input 1, via optional cable)
-
Composite Video Input
RCA x1
-
Service Port / Projector Control
Mini D-Sub 9-pin (RS-232c)
MECHANISMS
-
Front Elevation Mechanism
1x Mechanical foot, 10° maximum image elevation
RATINGS
-
Dimensions (W x H x D)
334mm x 101mm x 247mm
-
Weight
2.8kg
-
Power Source
100V – 240V AC, 50/60Hz
-
Power Consumption
Lamp Mode – High / Normal / Eco: 243 W / 218 W / 175 W
Standby in Eco Mode: 0.5 W
-
Noise Level
Lamp Mode – High / Normal / Eco: 36.4dBA / 34.4dBA / 29.0dBA
-
Operating Environment
+5°C to +35°C
-
Storage Environment
-10°C to +60°C
