Description

General Specifications

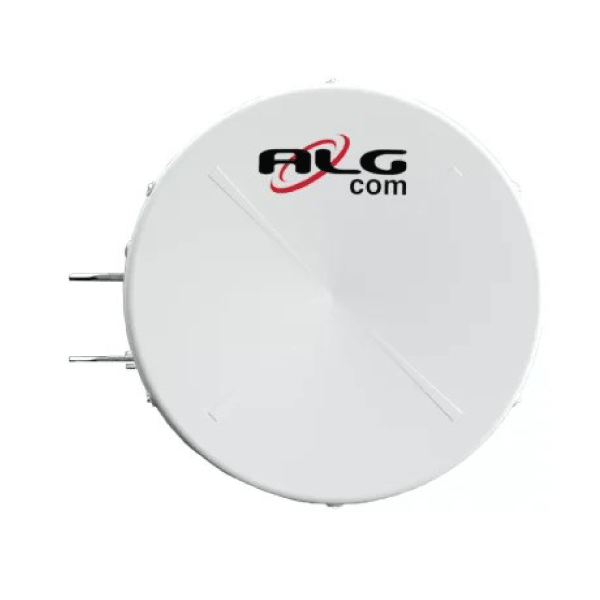

 Model Number  HW4961-33D-HP

Diameter (ft/m) 3/0.9

Polarization  Dual (Vertical and Horizontal)

Electrical Specifications

Input  2 × N-Female

Frequency Range (MHz)  5 GHz ISM Band up to 6.5GHz

VSWR  1.4:1

Impedance (Ω)  50

Gain (dBi)  33

3dB Beamwidth  H-plane: 3.3° / E-plane: 3.3°

F/B Ratio (dB)  37

Mechanical Specifications

Weight With Holder (kg)  9.5 kg

Color  Golden

Screws and Nuts  Galvanized

Fine Azimuth Adjustment  ±11°

Fine Elevation Adjustment  ±19°

Wind Loading (km/h)  200

Operating Temperature  -40 °C to 60 °C

Supportable Comparative Damp  90%
