Description
| WIRELESS | |
| Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800
5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses
4×Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range Improves transmission power to strengthen signal coverage |
| WiFi Capacity | Dual-Band
Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode, Access Point Mode |
| HARDWARE | |
| Processor | 1GHz Dual-Core CPU |

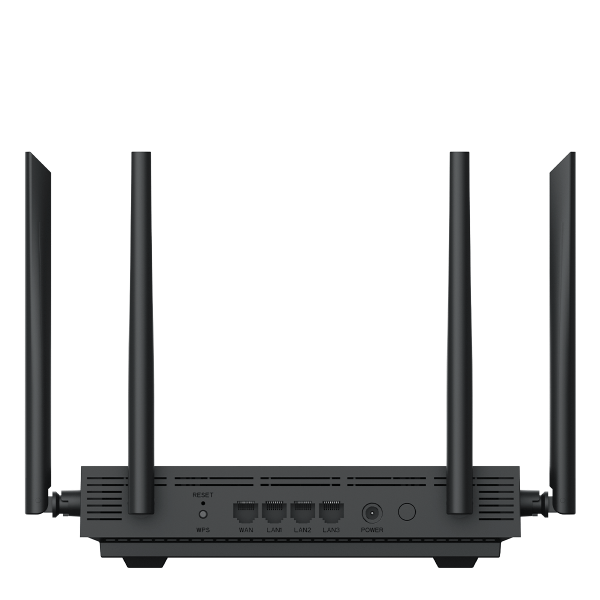

| Ethernet Ports | 1×Gigabit WAN Port
3×Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button, Power On/Off Button, LED On/Off Button, Reset Button |
| Power | 12 V /1A |
| SECURITY | |
| WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2 |
| Network Security | Application Layer Gateway |
| Guest Network | 1×5 GHz Guest Network
1×2.4 GHz Guest Network |
| SOFTWARE | |
| Protocols | IPv4, IPv6 |
| MESH | Support easy Mesh |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | NO-IP, DynDNS |
| Management | Support TR069 TR181 TR143 |
| PHYSICAL | |
| Dimensions(W*D*H) | 9.3×5.7×2.0 in
(236.0×144.0×50.0 mm) |
| Package Contents | Wi-Fi Router N6T
Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | CE:
<20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
