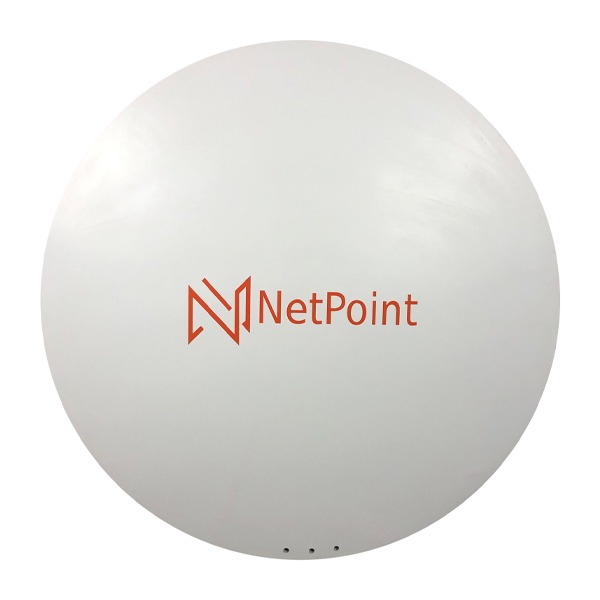

Description
Features and benefits
– Gain of up to 32 dBi with low VSWR and high port isolation across the entire
– 5.9 -7.2 GHz band
– One antenna that covers 6 and 7 Ghz
– Reduced interference with >49 dB minimum front to back
– Simplifies installation on site and guarantees “factory-tested” quality
– Connector type N Female
– Pigtails of N to RPSMA included in the box for free!!!
Electric specifications
Antenna type 5.9 – 7.2 Ghz
Frecuency Female N
Connector type 30, 31, 32 /5.9GHz, 6.8GHz and 7.2GHz
Gain (dBi) <2.0
VSWR HPOL 3.0°
Beamwidth VPOL 3.2°
Beamwidth HPOL 50
Impedance (Ohms) >49
Radius F/B (dB) Dual slant 45° or 90°
Polarization Directional parabolic reflector
Mechanical Specifications
Wind max survival speed (MPH) 124.2 miles with Radome
Azimuth adjustment +/- 60 degrees
Elevation adjustment (°) +/- 15 degrees
Mounting Pipe Diameter, Min 1 inch – 25.4mm
Mounting Pipe Diameter, Max 2.95 inch 75.00mm
Operating temperature (C°) -49 to +140 F° | -45 to +60 C°
Connector type Dual N-Female with pigtails for RP-SMA
Lenght of Pig tail 2ft – 600 mm
Package type Cardboard
Gross weigh (Kg)
Dimensions, L x W x H 39.68lb – 18kg
Shipping volume 28.34 x 28.34 x 1
