Description

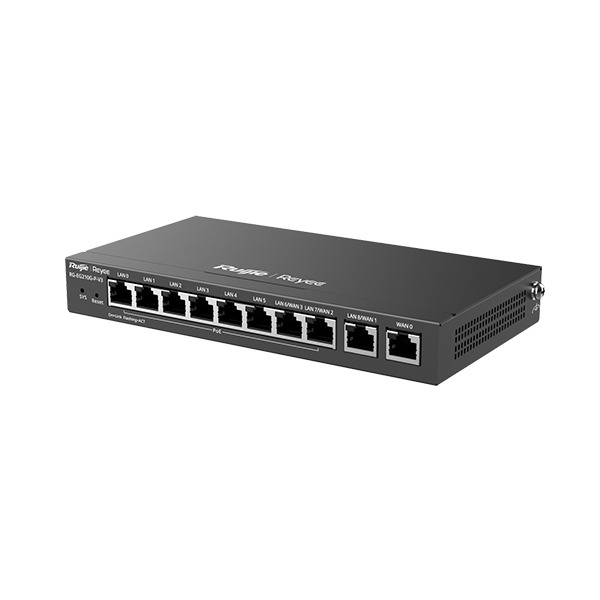

10-Port Gigabit Cloud Managed Gataway, support up to 8
POE/POE+ ports with 70W POE Power budget, support up to 4
WAN ports, support up to 200 concurrent users, 600Mbps.
Hardware Specifications
Port Specifications
Number of 10/100/1000BASE-T ports
- 10
Number of fixed LAN ports
- 6
Number of fixed WAN ports
- 1
System Specifications
CPU
- Dual-core processor, 880 MHz clock frequency per core
Flash memory
- 32 MB
RAM
- 256 MB
Power Supply and Consumption
PoE budget
- 110 W
Dimensions and Weight
Product dimensions (W x D x H)
- 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.1 in.)
Weight
- 1.48 kg (3.26 lbs)
Environment and Reliability
Mounting options
- Desk
Operating temperature
- 0°C to 40°C (32°F to 104°F)
Software Specifications
System Performance Capacity
Recommended number of concurrent clients
- 200
Throughput
- 1000 Mbps (Turbo Mode)
600 Mbps (Normal Mode)
