Description

Projector Specifications

Display

• Projection System: 0.65″ WXGA DLP

• Native Resolution: 1280 × 800 (WXGA)

• Brightness: 4,000 ANSI Lumens

• Contrast Ratio (with SuperEco Mode): 15,000:1

• Display Colors: 1.07 Billion Colors

Light Source

• Type: 240W UHP Lamp

• Lamp Life:

  • Normal Mode: 4,000 hours

  • SuperEco Mode: 12,000 hours

Optical

• Lens: F = 2.8, f = 7.51 mm

• Projection Offset: 124.8% ±10%

• Throw Ratio: 0.52 (Ultra-Short Throw)

• Optical Zoom: Fixed

• Digital Zoom: 0.8x ~ 2.0x

• Image Size: 60″ ~ 300″

• Throw Distance: 0.67 m ~ 3.36 m (87″ @ 0.97 m)

• Keystone Correction: Vertical ±19°

Performance

• Input Lag: 33.2 ms (low latency)

• Audible Noise:

  • Normal: 34 dB

  • Eco: 25 dB

Compatibility

• Resolution Support: VGA (640 × 480) up to Full HD (1920 × 1080)

• HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

• Horizontal Frequency: 15 kHz ~ 102 kHz

• Vertical Scan Rate: 23 Hz ~ 120 Hz

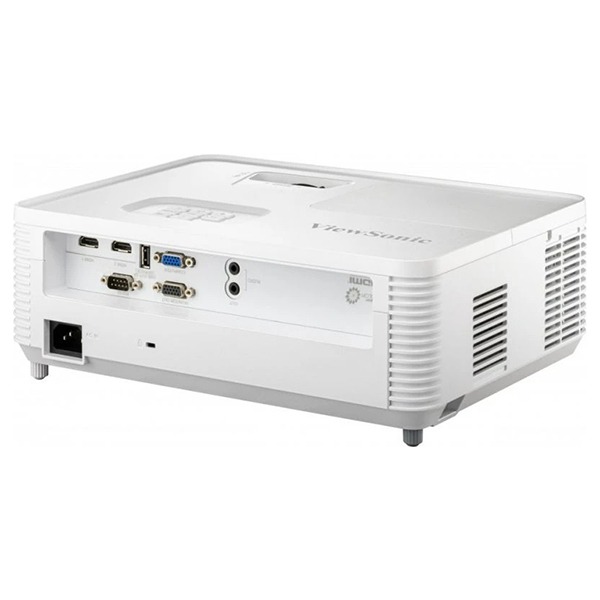

Inputs

• Computer In (D-sub, shared with Component): 1

• HDMI (1.4 / HDCP 1.4): 2

• Audio In (3.5 mm): 1

Outputs

• Monitor Out (D-sub): 1

• Audio Out (3.5 mm): 1

• Speaker: 16W (powerful built-in speaker)

• USB Type A (Power): 1 (5V / 1.5A)

Control

• RS232 (DB-9 pin): 1

• USB Type A (Service/Shared with USB Output): 1

Power & Environment

• Power Supply Voltage: AC 100–240V ±10%, 50/60 Hz

• Power Consumption:

  • Normal: 295W

  • Standby: <0.5W

• Operating Temperature: 0°C ~ 40°C

Dimensions & Weight

• Projector Dimensions (W × D × H): 309 × 234 × 115 mm (with adjustment foot)

• Packing Dimensions: 400 × 337 × 168 mm

• Net Weight: 2.87 kg

• Gross Weight: 4.08 kg

Languages

• OSD (On-Screen Display): 22 Languages (English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, Simplified Chinese, Traditional Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian)

• User Guide: 15 Languages (English, Simplified Chinese, Traditional Chinese, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish)

Standard Accessories

• Power Cord (×1)

• VGA Cable (×1)

• Remote Control (×1)

• Quick Start Guide (QSG)

• Lens Cover

• Air Filter (CN only)

• Warranty Card (CN only)

Optional Accessories

• Replacement Lamp / Light Source: RLC-128

• Air Filter: RSPL

• Wall/Ceiling Mount: PJ-WMK-305, PJ-WMK-007

• Carry Bag: PJ-CASE-008
