Description

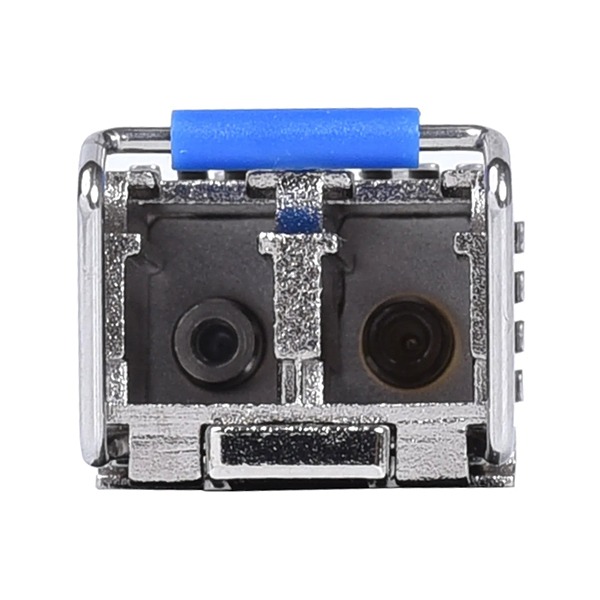

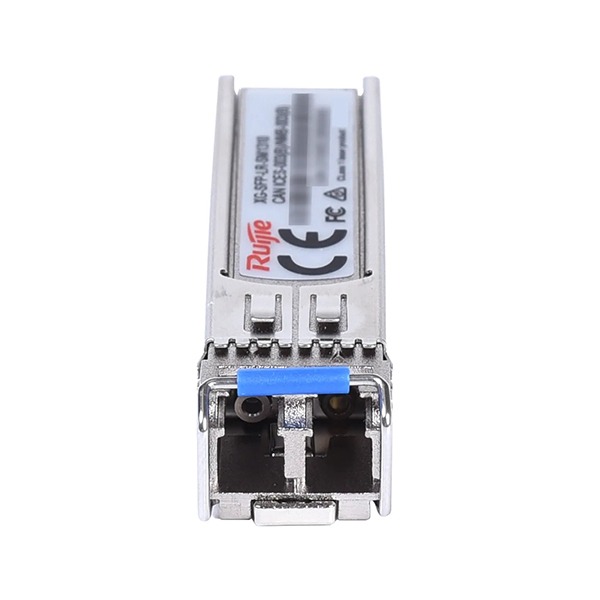

10GBASE-LR, SFP+ Transceiver (1310nm, 10km, LC)
Specifications
Optical Module Specifications
| Model | XG-SFP-SR-MM850 | XG-SFP-LR-SM1310 | XG-SFP-ER-SM1550 | XG-SFP-ZR-SM1550 | XG-SFP-LR10-SM1270-BIDI-I | XG-SFP-LR10-SM1330-BIDI-I |
| Data rate | 10.3125 Gbps | |||||
| Form factor | SFP+ | |||||
| Connector type | Duplex LC | Duplex LC | Duplex LC | Duplex LC | BIDI LC | BIDI LC |
| Cable type | MMF | SMF | SMF | SMF | SMF | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) | |||||
| Transmitter type | VCSEL | DFB | DFB | DFB | DFB | DFB |
| Receiver type | PIN | |||||
| Reach | 300 m (984.25 ft., with OM3 optical cables)
400 m (1312.34 ft., with OM4 optical cables) |
10 km (32,808.40 ft.) | 40 km (131,233.60 ft.) | 80 km (262,467.19 ft.) | 10km (32,808.40.13 ft.) | 10km (32,808.40.13 ft.) |
| Bit error ratio (BER) | 1.00E-12 | |||||
| Data diagnosis-capable (DDM/DOM) | Yes | |||||
| Power consumption | ≤ 1.5 W | |||||
| Transmitter Optical Parameters | ||||||
| Wavelength | 850 nm | 1310 nm | 1550 nm | 1550 nm | 1270 nm TX
1330 nm RX |
1330 nm TX
1270 nm RX |
| Max. transmit power (AVG) | –1 dBm | 0.5 dBm | 4 dBm | 4 dBm | 0.5 dBm | 0.5 dBm |
| Min. transmit power (AVG) | –7.3 dBm | –8.2 dBm | –4.7 dBm | 0 dBm | –8.2 dBm | –8.2 dBm |
| Min. extinction ratio | ≥ 3.0 dB | ≥ 3.5 dB | ≥ 3 dB | ≥ 8.5 dB | ≥ 3.5 dB | ≥ 3.5 dB |
| Receiver Optical Parameters | ||||||
| Receive sensitivity (OMA) | < –11.1 dBm | < –12.6 dBm | < –14.1 dBm | < –24 dBm | < –14.4 dBm | < –14.4 dBm |
| Overload optical power (AVG) | –1 dBm | 0.5 dBm | –1 dBm | –7 dBm | 0.5 dBm | 0.5 dBm |
| Environment and Reliability | ||||||
| Operating temperature | 0°C to 70°C (32°F to 158°F) | –40°C to +85°C (–40°F to +185°F) | ||||
| Operating humidity | 10% RH to 90% RH | |||||
| Storage temperature | –40°C to +85°C (–40°F to +185°F) | |||||
| Storage humidity | 10% RH to 90% RH | |||||
| Dimensions and Weight | ||||||
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | |||||
| Weight | 35 g (0.08 lbs.) | |||||
Cable Specifications
| Model | XG-SFP-AOC1M | XG-SFP-AOC3M | XG-SFP-AOC5M |
| Data rate | 10.3125 Gbps | ||
| Form factor | SFP+ | ||
| Connector type | SFP+ to SFP+ | ||
| Data diagnosis-capable (DDM/DOM) | Yes | ||
| Length | 1 m (3.28 ft.) | 3 m (9.84 ft.) | 5 m (16.40 ft.) |
| Module type | Active | ||
